Bevy_Forge/docs/m1-core.md

Bevy Forge v2 — M1 Core

Status: M1 Core complete and independently verified (pass_with_risks). M0 is committed at 59212c9; M1 turns the M0 spike into a scene-editing slice that reads and writes the existing bevy_forge_core .forge.ron format.

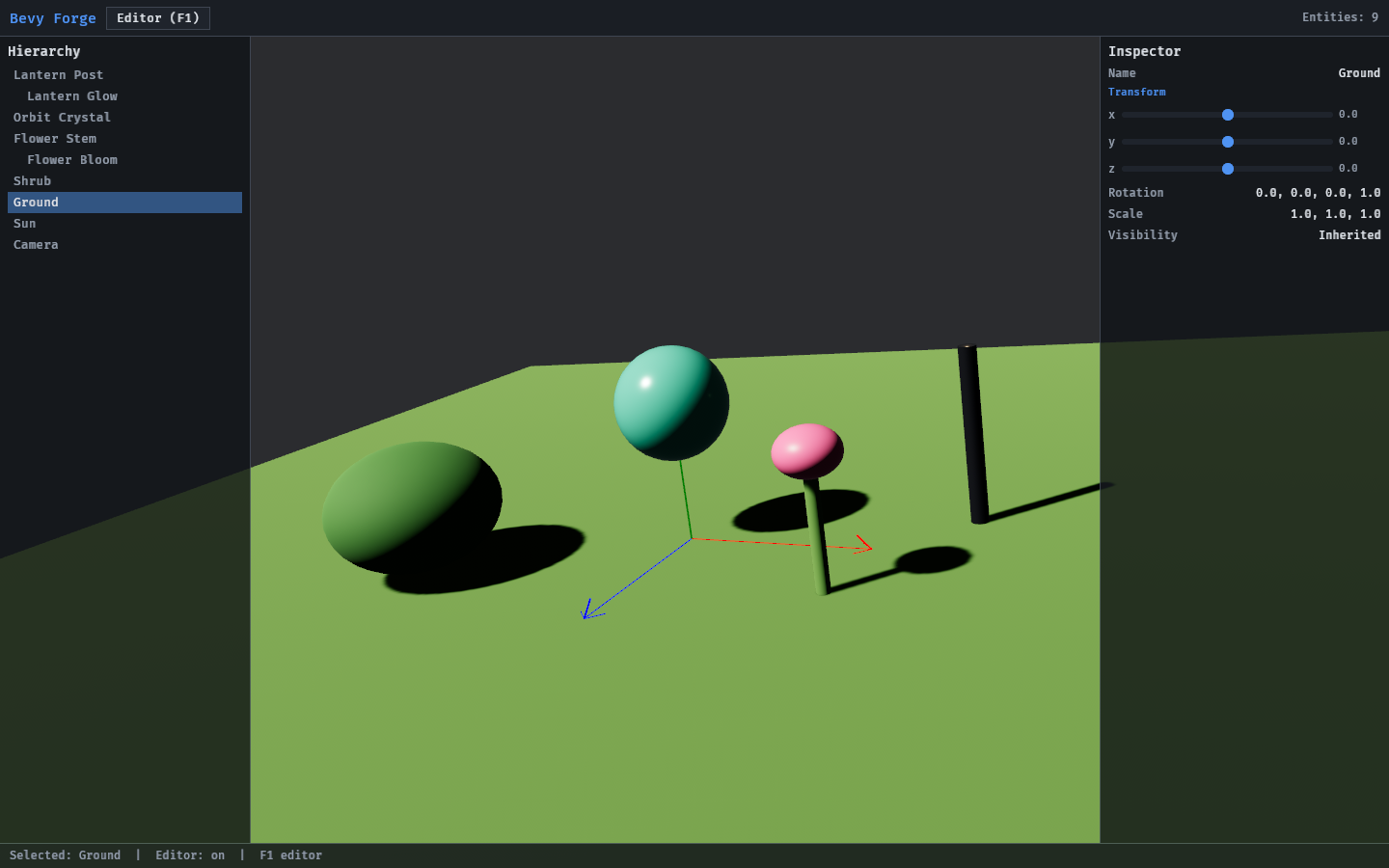

1000×640 variant: m1-core-1000x640.png.

What M1 adds

• Real scene load: FORGE_PROJECT + FORGE_SCENE load a .forge.ron scene through bevy_forge_core into the live ECS. The garden demo is the reference scene.
• Save: Ctrl+S syncs edited transforms/names/visibility back into the scene document and writes a .forge.ron file (FORGE_SAVE_PATH, default scenes/edited.forge.ron).
• Transform undo/redo: Ctrl+Z / Ctrl+Shift+Z / Ctrl+Y for inspector-slider and gizmo-drag edits.
• Hotkeys: Ctrl+S save, F focus camera, Delete delete the selected subtree, Ctrl+D duplicate the selected subtree.
• Focused tests: 66 runtime tests (scene 6, shortcuts 6, history 8, inspector 13, gizmo 10, plus the M0 suite), all green.
• Independent verification: V11 pass_with_risks (.swarm/m1/reviews/V11.md), including a post-review delta after the camera guard. Runtime 66 tests, workspace 412 passed, 2 ignored.
• Interactive checks done: load 9/7, slider edit → Ctrl+Z → Ctrl+Shift+Z, Ctrl+S with a valid saved RON (garden source untouched), Ctrl+D duplicate, Delete, F focus, camera delete/duplicate refusal, no panic.

Run

cd bevy-forge
FORGE_PROJECT=examples/demo-project \
FORGE_SCENE=scenes/garden.forge.ron \
cargo run -p bevy_forge_runtime --example editor_live

Variable	Default	Meaning
FORGE_PROJECT	examples/demo-project	project root with a Cargo.toml containing bevy
FORGE_SCENE	scenes/garden.forge.ron	scene to load, relative to the project root
FORGE_SAVE_PATH	scenes/edited.forge.ron	Ctrl+S output, relative to the project root

The scene plugin loads when at least one of FORGE_PROJECT/FORGE_SCENE is set; the command above sets both. The garden scene has 9 entities / 7 roots (Camera, Sun, Ground, Shrub, Flower Stem, Flower Bloom, Orbit Crystal, Lantern Post, Lantern Glow). The custom forge_demo::Orbit component is skipped in the live ECS with a warning; all 3D meshes, lights, camera, names, transforms and visibility load.

Controls

Input	Action
F1 / Editor (F1)	Toggle the editor UI
Click hierarchy row	Select entity
Drag inspector Translation X/Y/Z	Move selected entity
Drag gizmo axis	Move selected entity
Right/middle drag, wheel	Orbit / pan / zoom camera
Ctrl+S	Save .forge.ron
Ctrl+Z	Undo transform edit
Ctrl+Shift+Z / Ctrl+Y	Redo transform edit
F	Focus camera on selected entity
Delete	Delete selected subtree
Ctrl+D	Duplicate selected subtree

Delete/duplicate are structural edits and are not undoable in M1; undo/redo is Transform-only.

Architecture

crates/bevy_forge_runtime/
├── src/scene.rs       .forge.ron load, ECS spawn, save/sync, delete/duplicate helpers
├── src/shortcuts.rs   Ctrl+S / F / Delete / Ctrl+D
├── src/history.rs     transform command stack + Ctrl+Z/Y
├── src/inspector.rs   M0 reflection inspector + history capture
├── src/gizmo.rs       M0 camera/gizmo + history capture
├── src/hierarchy.rs   M0 live tree
└── examples/editor_live.rs

The runtime now depends on bevy_forge_core (Bevy-free model/persistence). Core Transform uses XYZ Euler degrees; the bridge converts to/from Bevy quaternions with bevy_forge_core::math::{quat_from_euler_deg, quat_to_euler_deg}.

Limits (M1)

• 3D only in the live bridge; Sprite/Text2d/Camera2d components are skipped (M2).
• Custom components are skipped in ECS but preserved in the document on save.
• Delete/duplicate are not undoable; multi-select/docking/terminal/play mode are out of scope.
• Deleting or duplicating a Camera3d subtree is refused with a warning in M1: the editor camera is adopted from the scene, and a second active camera would break the viewport.
• V11 residual: a synthetic portal drag can be shorter than one Bevy frame, so the live gizmo drag → Ctrl+Z path and the inspector click/snap finalizer remain unit/helper-tested rather than scripted end-to-end. Slider-drag undo is interactively verified.
• The garden Camera3d is adopted by the editor camera; do not add a second active camera.
• Saving must be explicit (Ctrl+S); there is no autosave loop yet.
• Hover styling and screenshot determinism: park the pointer outside the window for byte-stable screenshots (M0 caveat).
• A synthetic portal drag can be shorter than one Bevy frame, so the live gizmo-drag → Ctrl+Z path is covered by transform helper/unit tests and the unchanged M0 drag code, not by a scripted mouse hold; the slider undo path is interactively verified.

Verification

M0 acceptance is in m0-spike.md. M1 was independently verified by V11: .swarm/m1/reviews/V11.md (initial and post-fix delta). The exact commands are in .swarm/m1/plan.md; the final report with actual spend is in the local M1 coordination dir.
